Check Valves

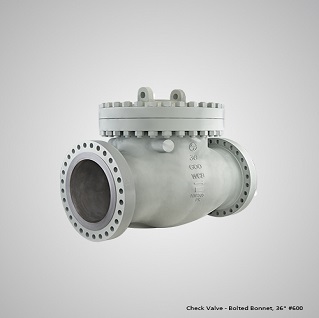

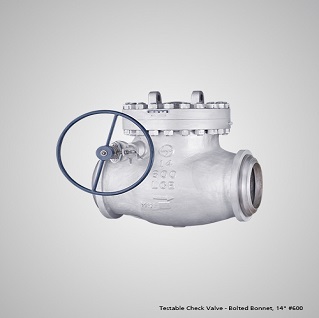

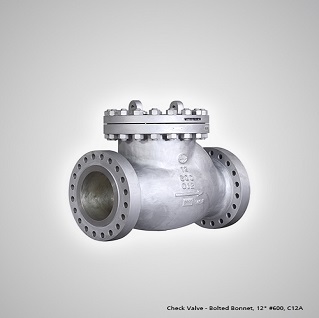

Check Valves - Bolted Bonnet


Size : 2" to 48" (50 mm to 1200 mm)

ASME Class : Class 150 to 2500

Design Standard : BS 1868, API 594, ASME B 16.34

Beyond Standards:

Check Valve design complies to BS 1868 and API 594

Offered with API monogram

Fugitive Emissions - Complies with ISO 15848-1 (<50 ppm)

Compliance to Annex III Module H of Pressure Equipment Directive 2014/68/EU

Check valves successfully tested to Shell 77/300 and witnessed by Shell Inspectors

Features that Add Value:

Internal hinge design, no hole in the body, eliminates leakage path

Inconel overlay/ cladded option available

Versatile Solutions:

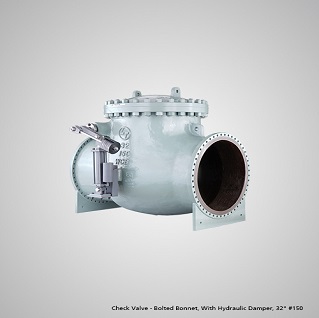

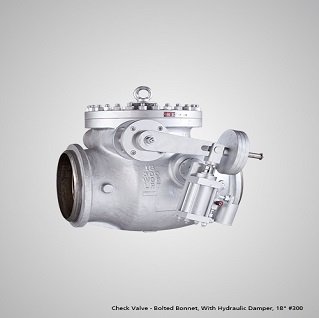

Swing check valves offered with damper arrangement for non-slam applications

Options: Tilting Disc Check Valve, Axial Flow Check Valve, Stop Check Valve, Lift Check Valve, Steam Jacketed and FBE/Fusion-bonded Epoxy Lined Valves

ValvTrac™ RFID tags for reliable digital traceability

Stainless Steel Corrosion-Resistant Check Valves

Special Features:

 Integral body seat. In-situ hardfacing provided for Trim 12 and 16 valves

 Internal hinge design eliminates additional leakage path

 Body-bonnet Joint - Class 150 Check Valves offered with square-shaped body-bonnet joints in size 2” and with ovalshaped joints in 3” size. Valves in all other sizes and pressure classes offered with circular body-bonnet joints.

Tilting Disc Check Valves

 The disc has a pivot axis closer to the flow-bore centre-line compared with Swing Check Valves.

 Disc seats against a conical surface on the seat ring

 Suitable for pulsating flow and fluid with particulates

 Low susceptibility to water hammer

Axial Flow Check Valves

 Flow forces the disc open against spring force; when the flow is reversed, the spring quickly close the valve by forcing the disc against a seat

 Axial Flow Check Valve offers lower pressure drop, lower reverse flows and low slamming
