Cryogenic Valves

Cryogenic Gate, Globe & Check Valves

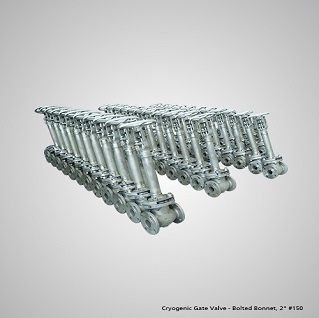

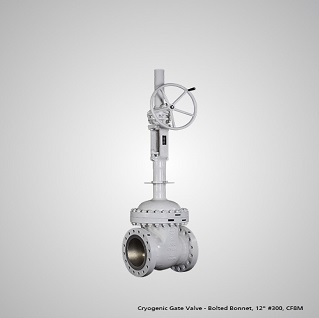

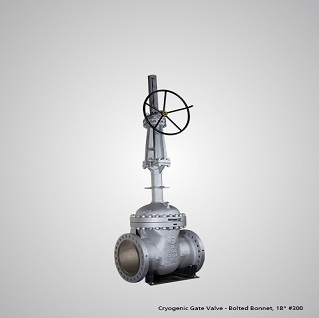

Gate Valves : Size: 2" to 54" (50 mm to 1350 mm) ASME Class: 150 to 2500 Design Standards: API 600, ASME B16.34, BS 6364, ISO 28921

Globe Valves : Size: 2" to 24" (50 mm to 600 mm) ASME Class: 150 to 600 Design Standards: API 623, BS 1873, ASME B16.34, BS 6364, ISO 28921

Check Valves : Size: 2" to 36" (50 mm to 900 mm) ASME Class: 150 to 2500 Design Standards: API 594, BS 1868, ASME B16.34, BS 6364, ISO 28921

Beyond Standards:

Fugitive Emissions - Complies to ISO 15848-1: Endurance class CO2 and Tightness class BH

Valves tested at -196 degree C as per BS 6364. In-house facility for valves up to 60"

SIL3 Safety Integrity Level for Automated Valves

Cryogenic valves successfully tested to Shell Design Validation Test Procedure 77/300 and witnessed by Shell Inspectors

Optional tests - EN 12567 Annex A (Thermal Shock Test) and Annex B (Endurance Test)

Features that Add Value:

Bonnet extension/ extension column keep packing rings away from cryogenic temperatures, and within its operating range

Thermal stabilization treatment conducted on body and obturator to ensure dimensional stability and to avoid distortion during temperature cycles

Cavity relief pressure arrangement to prevent thermal effect

Seat and disc hardfaced to prevent seizing and galling

Versatile Solutions:

Available in a wide grade of metallurgies for a range of low temperature applications.

ValvTrac™ RFID tags for reliable digital traceability
