Globe Valves

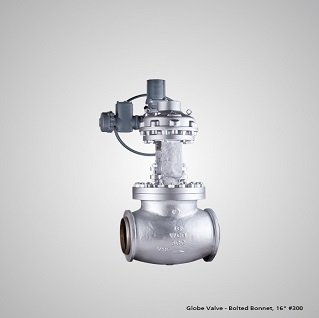

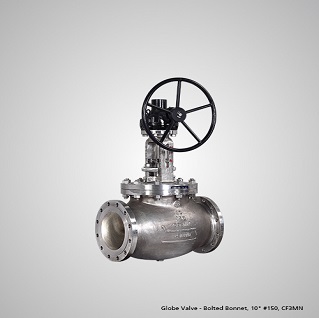

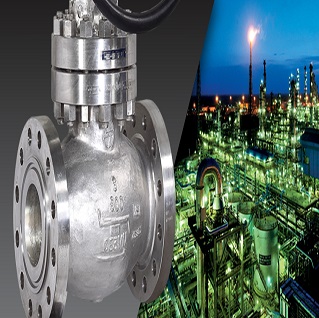

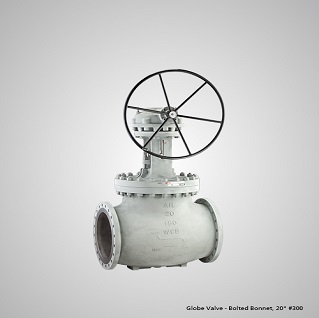

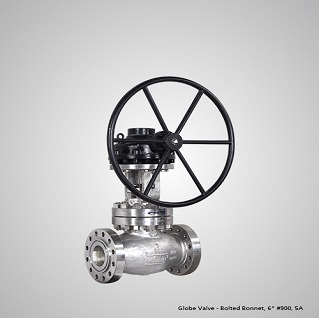

Globe Valves - Bolted Bonnet

Size : 2" to 20" (50 mm to 500 mm)

ASME Class : Class 150 to 2500

Design Standard : API 623, BS 1873, ASME B 16.34

Beyond Standards:

Globe Valve design complies to API 623 (higher stem diameter than BS 1873)

Fugitive Emissions - Complies to API 624 and ISO 15848-1 (<50 ppm / Class AH leakage levels, optional)

Globe Valves tested to API 624 at Yarmouth Research Lab, Maine, USA

Fire safe - By design and tested to API 607/ISO 10497

CE Marking – Meets requirements of Pressure Equipment Directive 2014/68/EU, Annexure III, Module H

PED Module B1 Design Examination Certificate (certified by DNV) available

Atex - Meets requirements of Atex Directive 94/9/EC (ATEX), category 2 non-electrical equipment

SIL3 Safety Integrity Level for Automated Valves

Globe valves successfully tested to Shell Design Validation Test Procedure 77/300 and witnessed by Shell Inspectors

Features that Add Value:

Body Guided disc in globe valves (all sizes/classes) provides disc stability and avoids vibration of the disc-disc nut assembly

Non-rotating rising stem design in globe valves (2" and above) yields a 20-30% reduction in valve torque vis-à-vis the Rotating rising stem globe valves

In-situ seat design in all globe valves

Inconel overlay cladded option available for economical solutions

Versatile Solutions:

Y-Globe, Bellows-sealed, FBE/ Fusion-bonded Epoxy Lined, Steam-Jacketed

ValvTrac™ RFID tagging offered for reliable digital traceability
