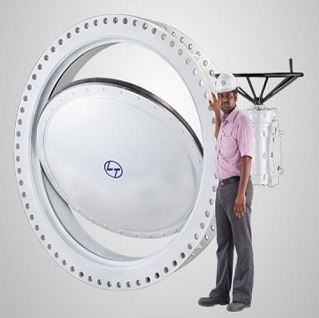

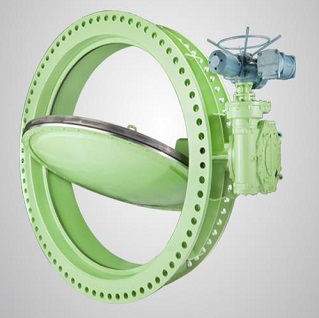

Fabricated Steel Butterfly Valves

Size : 6" to 120” (150 mm to 3000 mm)

Pressure Rating : PN6, PN10, PN16

Design Standard : AWWA C 504, AWWA C 516, EN 593, ISO 5752

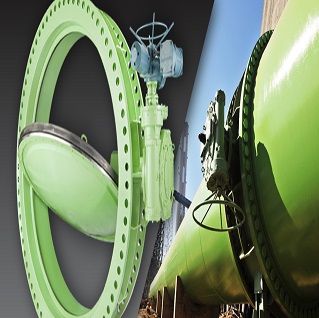

Aquaseal Max is a fabricated steel butterfly valve developed as an alternate for cast iron butterfly and sluice valves in water distribution systems. The highly reliable valve also finds application in power plants, utility and fire water lines, and HVAC systems. Customised Aquaseal Max can be used to handle air, gases and vacuum services. The valve has successfully under gone Proof of Design (POD) test as per AWWA C 504 and AWWA C 516.

The key feature of Aquaseal Max Fabricated Steel Butterfly Valve is a Self-energising Disc Seal that uses line pressure to provide assured sealing.

Salient Features:

Self-energising Disc Seal - Bi-directional bubble-tight sealing

Assured Sealing to Atmosphere

Lighter and Stronger Construction

Lower Torque, Longer Life

Maintenance-free Bearings

Versatile Range:

Pressure ratings: PN6, PN10 and PN16

Body materials: Carbon Steel IS 2062, A 516 Gr.70, SS 304, SS 316

Seat options: Nitrile Rubber, EPDM, Viton

Specials: Ebonite-lined valves for sea water applications, Special sealing systems for vacuum services, Butt-weld ends
