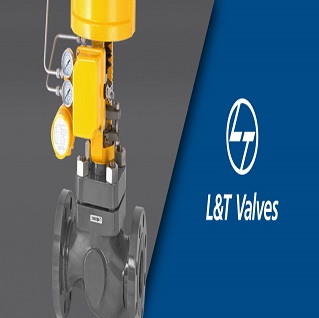

Superior performance in liquids and gaseous services is the hallmark of the Globe Control Valve. Easy, quick and economical maintenance makes the Globe Control Valve more user friendly. The spring cylinder actuated imparts stiffness and maintains very high precision in positioning, strong response, repeatability and controlled high speed movement are the characteristics absent in diaphragm operated control valves. Globe Control Valves has the thrust capability to shutoff against higher fluid pressures as it can handle up to 150 Psi / 10.30 Bar air supply.
Valve closure is totally dependent on springs in most diaphragm actuators. The unique design of these valves enables it to combine the spring force, fluid pressure and supply air pressure to achieve an extremely tight shutoff. A self-aligning seat ring adds to and further improves the shutoff capability.
Galling at cage is the culprit in many common maintenance issues with globe valves because of the close metal-to-metal contact between plug & cage. It has two top heavy duty stem guides. Contact between the plug and seat retainer is completely avoided. Easy and quick maintenance is permitted due to clamped-in seat and top entry trim.
Salient Features:
Reliable High-thrust Cylinder Actuator
Accurate Positioning
High Repeatability
Double Stem Guiding does not come in contact with operating fluid
Sufficient Clearance between plug head and seat retainer to avoid galling
Self-Aligning seat ring
Shutoff assisted by fluid pressure, cylinder spring and air pressure
Corrosion-resistant construction
High Thrust cylinder overcomes high pressures to provide exceptional tight shutoff
Anti-Cavitation and Noise Attenuation trim options
Heavy-Duty plug stem
Valve design minimizes requirements for stocking spare parts
Stiff, Heavy-Duty parts provide extended life
