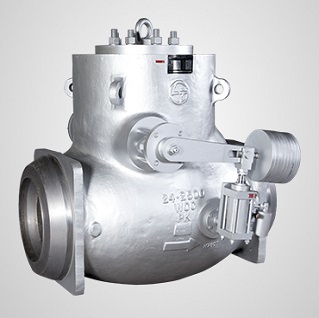

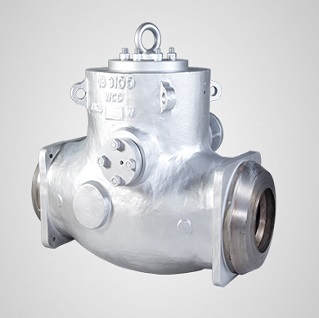

Check Valves - Pressure-seal

Size : 3" to 42" (80 mm to 1050 mm)

ASME Class : Class 600 to 4100

Design Standard : ASME B 16.34

Beyond Standards:

Pressure-seal Check Valve conforms to ASME B 16.34.

CE Marking - Meets requirements of Pressure Equipment Directive 2014/68/EU, Annexure III, Module H

Atex - Meets requirements of Atex Directive 94/9/EC (ATEX), category 2 non-electrical equipment

Safety Integrity Level for Automated Valves - SIL 3 certification available

Features that Add Value:

Valves in intermediate reduce cost of ownership

Pressure-Seal mechanism utilizes line pressure to enhance seal; ensures sealing integrity at higher operating pressures.

Higher hardfacing thickness (3 mm) to ensure consistent hot hardness

Customised deposition process in F91/ C12A valves to avoid delamination of hardfaced surfaces

Live loading of bonnet bolts for F91/ C12A valves

Versatile Solutions:

Available in a cast and forged steels and exotic metallurgies for a wide variety of applications

By-pass arrangement provided for over-pressure protection based on customer requirement

ValvTrac™ RFID tagging offered for reliable digital traceability
