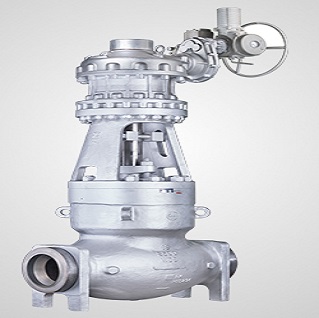

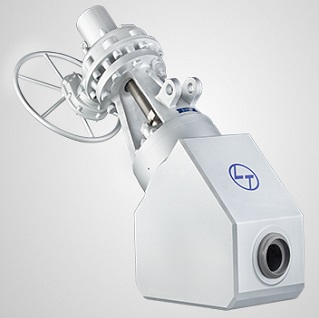

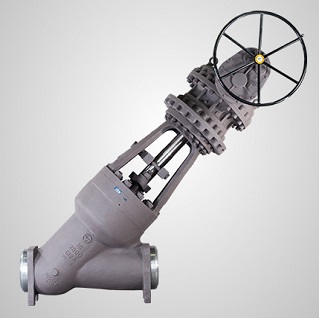

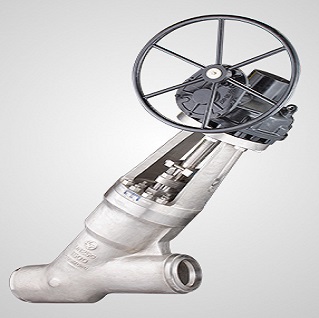

Globe Valves - Pressure-seal

Size : 3" to 18" (80 mm to 450 mm)

ASME Class : Class 900 to 4100

Design Standard : ASME B 16.34

Beyond Standards:

Pressure-seal Globe Valve design conforms to ASME B 16.34.

CE Marking – Meets requirements of Pressure Equipment Directive 2014/68/EU, Annexure III, Module H

Atex - Meets requirements of Atex Directive 94/9/EC (ATEX), category 2 non-electrical equipment

Safety Integrity Level for Automated Valves - SIL 3 certification available

Pressure-seal Globe Valves (up to Class 2500) used in Oil & Gas industry tested to ISO 15848-1 Class BH

Pressure-seal Globe Valves successfully tested to Shell Design Validation Test 77/300 and witnessed by Shell Inspectors

Features that Add Value:

Valves in intermediate classes reduce total cost of ownership

Pressure-Seal mechanism utilizes line pressure to enhance seal; ensures sealing integrity at higher operating pressures.

In-situ hardfaced seat design for all sizes

Higher hardfacing thickness (3 mm) to ensure consistent hot hardness

Body-guided Disc offered in Pressure-seal Globe Valves (all sizes/classes) provides disc stability and avoids vibration of the disc-disc nut assembly

Disc guides hardfaced for longer life

Customised deposition process in F91/ C12A valves to avoid delamination of hardfaced surfaces

Live loading of bonnet bolts for F91/ C12A valves

Special high purity graphite packing (seven rings) provided for pressure rating > Class 2500 in Power applications

Versatile Solutions:

Available in a cast and forged steels and exotic metallurgies for a wide variety of applications

By-pass arrangement provided for over-pressure protection based on customer requirement

ValvTrac™ RFID tagging offered for reliable digital traceability
