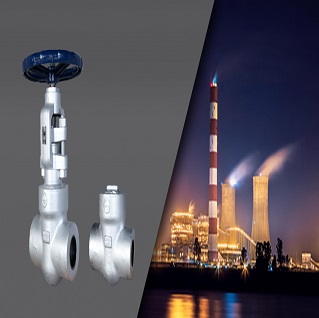

Small Bore Valves (Up to #4500)

Size : ½" to 2" (8 mm to 50 mm)

ASME Class : Class 1500 to 4500

Design Standards : ASME B16.34

L&T Valves manufactures a versatile range of ultra high pressure Small Bore Forged Steel Gate, Globe and Check Valves. The Valves is available in a variety of materials and end connections to meet customer requirements.

Salient Features:

Body-bonnet Connection : The body-bonnet connection of these valves is of threaded construction. To enhance the seal, the body-bonnet joint is seal-welded.

Stem-disc Assembly : The disc of a globe valve is connected to the stem using a wire inserted through a hole in the disc. This unique stem-disc connection enables the disc to rotate freely on the stem, align perfectly with the seat and produce a tight seal.

Seat and Disc : Forged steel valves have integral seats that are machined and hard-faced insitu for longer service life. As a standard, the valves are offered with 1.6 mm hard-facing. The discs are guided during opening/ closing to ensure proper sealing and to minimize seat damage.

Versatile Range:

T-pattern Valves

Material Grades: A105, F22, F91, F92, F304
