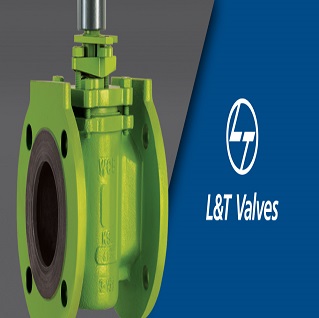

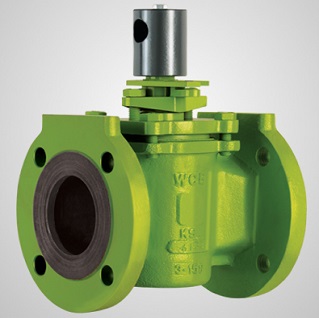

Sleeved Plug Valves
Size : ½" to 16"
ASME Class : Class 150 to 300
Design Standard : API 599, ASME B 16.34
L&T Valves offers a versatile range of PTFE Sleeved Plug Valves. The valves offer tight shutoff without sealants or lubricants and are available in sizes up to 400 mm, in ASME classes 150 and 300.
The interference fit of the taper plug with PTFE sleeve creates a bubble-tight seal. The sleeve totally surrounds the plug, and sealing occurs around the circumference of the plug. The integrity of the seal is totally independent of line pressure.
The rugged construction, reliable bubble-tight sealing and on-line maintenance feature make the valve an ideal choice for chemicals and highly aggressive process media.
Salient Features:
Taper Plug Design - Lower operating torque compared to lubricated plug valves
Plug Adjustment Option - Enables online maintenance
Avoids downtime
Large PTFE Sleeve - Bubble-tight shutoff
No metal-to-metal contact
Longer service life
Positively-locked Sleeve - Reliable sealing through thermal cycles
Wiping action between sleeve and plug - Durability in slurry lines
Reverse-lip PFA Diaphragm - Self-adjusting dynamic stem seal provides assured sealing to atmosphere
Rugged Body - Long and reliable service life
No Cavities - Line Fluid does not get entrapped
